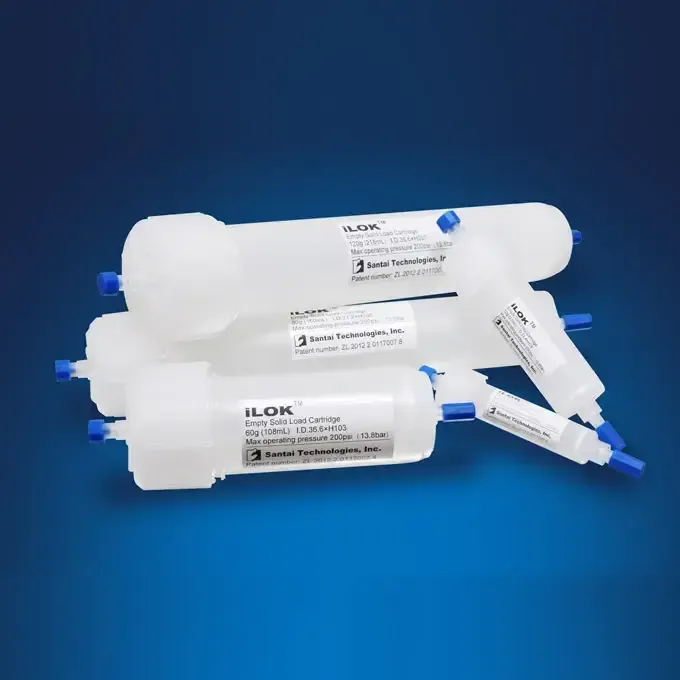

SepaFlash™ iLOK™ Series
SepaFlash iLOK™ flash cartridges offer users convenience for manual assembly, allowing for a flexible sample loading method: solid load and direct liquid injection.
3 kinds of iLok flash cartridge for choose， including empty cartridge, pre-packed cartridge and 75% pre-packed cartridge.
Product Introduction
SepaFlash™ iLOK™ flash cartridges offer users convenience for manual assembly, allowing for a flexible sample loading method: solid load and direct liquid injection. The series is offered in three formats: iLOK™ flash cartridge pre-packed with UltraPure silica gel, iLOK™ SL cartridge which is pre-packed with 85% column volume of silica gel and iLOK™ empty solid load cartridge comes with screw cap, frits, disbursing unit, O-ring and end tips.
- Innovative column design is convenient for manual assembly and column stacking.
- Available in a wide range of cartridge sizes for any situation.
- Reinforced cartridge body with the maximum operating pressure up to 200 psi.
Ordering Information
iLOK™ Flash Cartridges (pre-packed, UltraPure irregular silica, 40−63 µm, 60 Å)
(surface area 500 m2 /g, pH 6.5–7.5, loading capacity 0.1–10%)
Item Number | Column Size | Sample Size | Flow Rate | Cartridge Length (mm) | Cartridge ID (mm) | Max. Pressure (psi/bar) | Quantity per Box | |
|---|---|---|---|---|---|---|---|---|
Small | Large | |||||||
SD-5101-004 | 4 g | 4 mg–0.4 g | 15–40 | 115.1 | 12.8 | 200/13.8 | 24 | 120 |
SD-5101-012 | 12 g | 12 mg–1.2 g | 30–60 | 137.8 | 21.4 | 200/13.8 | 24 | 108 |
SD-5101-025 | 25 g | 25 mg–2.5 g | 30-60 | 188.2 | 21.6 | 200/13.8 | 20 | 80 |
SD-5101-040 | 40 g | 40 mg–4.0 g | 40-70 | 188.7 | 26.8 | 200/13.8 | 12 | 48 |
SD-5101-060 | 60 g | 60 mg–6.0 g | 60-150 | 173.3 | 36.6 | 200/13.8 | 12 | 24 |
SD-5101-080 | 80 g | 80 mg–8.0 g | 50–100 | 263.5 | 31.2 | 200/13.8 | 10 | 20 |
SD-5101-100 | 100 g | 100 mg–10 g | 80–220 | 146.6 | 60.4 | 150/10.3 | 6 | 12 |
SD-5101-120 | 120 g | 120 mg–12 g | 60-150 | 277.7 | 36.6 | 200/13.8 | 8 | 16 |
SD-5101-220 | 220 g | 220 mg–22 g | 80-220 | 218.5 | 60.6 | 150/10.3 | 4 | 8 |
SD-5101-330 | 330 g | 330 mg–33 g | 80-220 | 271.6 | 60.6 | 150/10.3 | 2 | 5 |
Compatible with all flash chromatography systems on the market.
iLOK™ Empty Solid Load Cartridges
(iLOK™ empty solid load cartridge with screw cap, frits, disbursing unit, O-ring and end tips.)
Item Number | Description | Volume | Cartridge Length (mm) | Cartridge ID (mm) | Max. Pressure (psi/bar) | Quantity per Box | |
|---|---|---|---|---|---|---|---|
Small | Large | ||||||
SD-0000-004 | Empty solid load cartridge, 4 g | 8 | 115.1 | 12.8 | 200/13.8 | 24 | 120 |
SD-0000-012 | Empty solid load cartridge, 12 g | 27 | 137.8 | 21.4 | 200/13.8 | 24 | 108 |
SD-0000-025 | Empty solid load cartridge, 25 g | 46 | 188.2 | 21.6 | 200/13.8 | 20 | 80 |
SD-0000-040 | Empty solid load cartridge, 40 g | 70 | 188.7 | 26.8 | 200/13.8 | 12 | 48 |
SD-0000-060 | Empty solid load cartridge, 60 g | 104 | 173.3 | 36.6 | 200/13.8 | 12 | 24 |
SD-0000-080 | Empty solid load cartridge, 80 g | 147 | 263.5 | 31.2 | 200/13.8 | 10 | 20 |
SD-0000-100 | Empty solid load cartridge, 100 g | 176 | 146.6 | 60.4 | 150/10.3 | 6 | 12 |
SD-0000-120 | Empty solid load cartridge, 120 g | 215 | 277.7 | 36.6 | 200/13.8 | 8 | 16 |
SD-0000-220 | Empty solid load cartridge, 220 g | 376 | 218.5 | 60.6 | 150/10.3 | 4 | 8 |
SD-0000-330 | Empty solid load cartridge, 330 g | 539 | 271.6 | 60.6 | 150/10.3 | 2 | 5 |
SD-0000-0800B | Empty solid load cartridge, 800 g | 1395 | 140 | 127 | 100/6.9 | 1 | / |
SD-0000-1600B | Empty solid load cartridge, 1600 g | 2760 | 250 | 127 | 100/6.9 | 1 | / |
SD-0000-3000B | Empty solid load cartridge, 3000 g | 5165 | 440 | 127 | 100/6.9 | 1 | / |
SD-0000-5000B | Empty solid load cartridge, 5000 g | 8610 | 692 | 127 | 100/6.9 | 1 | / |
SD-0000-7000B | Empty solid load cartridge, 7000 g | 12510 | 1000 | 127 | 100/6.9 | 1 | / |
Compatible with all flash chromatography systems on the market.

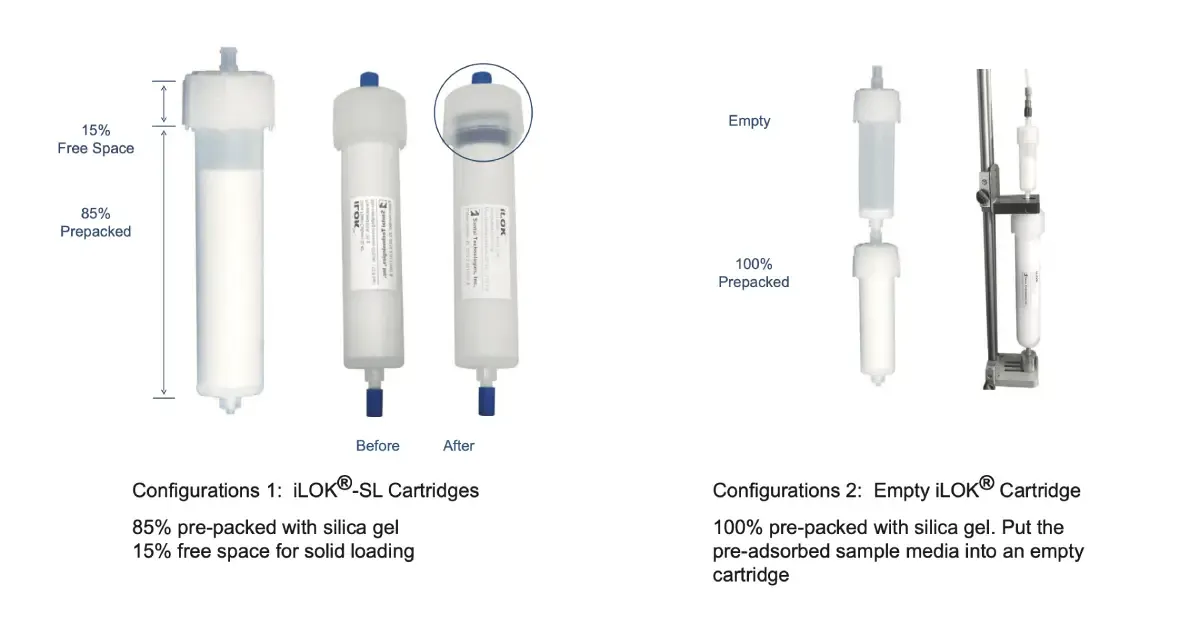

Configurations for solid loading
Solid sample loading have the technique to load samples to be purified onto a column, particularly in the case of low-solubility samples. On this occasion, iLOK™ flash cartridge is a very suitable choice.
The sample is dissolved in a suitable solvent and absorbed onto diatomaceous earth. After removal of the residual solvent, the adsorbent is put on top of partly filled cartridge or into an empty cartridge.
